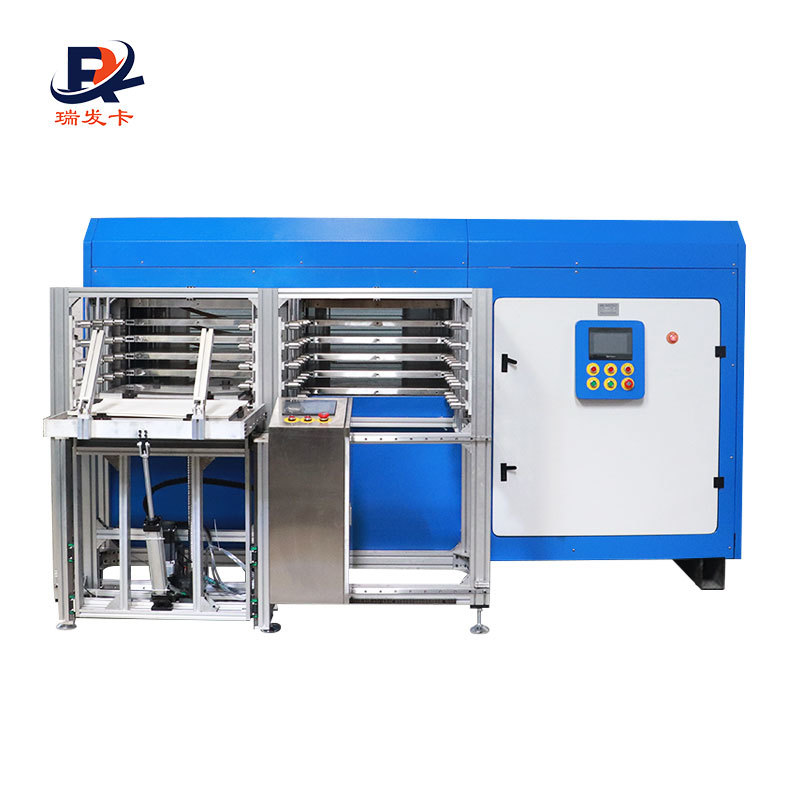

Automatic PVC Plastic Smart ID Card Cutting Mat Laminator

32507.60 - 32812.50 USD ($)/Set

Product Details:

X

Price And Quantity

  • 1 Set
  • 32507.60 - 32812.50 USD ($)/Set

Product Description

Features:

 This laminator machine can be used for laminating various kinds of RFID inlay ,plastic cards such as payment card, membership card, gift card, vip card, credit card,attendance card. it adopt PLC industrial automation control system & touch-screen display which are imported, convenient for operation. With its powerful functions, the software can keep records of several lamination parameters automatically. Trouble alarm and keep record functions make the machine convenient.

This laminator can be used for fusing all kind s of pc pvc sheet with both heating and cooling tower are made of aluminum alloy, realizing fast heating & cooling functions with non- rusty. The luxury energy saving model with sealing state design for heating insulation saves energy.

The machine with 5/7/10 working daylights with much higher productivity.

With automatic frequency conversion function, high quality imported VFD matched with variable fluid technique, the precision up to ±0.05Mpa

With automatic pusher type patented technology, materials can be transferred easily and automatically.



Technical Parameter:

Cooling Method

Water Cooling

Heating Method

Electric Heating (oil heating is optional)

Pressure Stages

Heating 12 stages/cooling 5 stages

Pressure Precision

 +/-0.05 MPa

Temperature Precision

 0-200℃   +/-1(℃)

Laminating Plate Smoothness

+/-0.05mm

Laminating Plate

Aluminum Alloy

Hydraulic Cylinder

Single/four

Pressure

0-20Mpa

Laminating Platen Size

580mm×680mm (600x750mm is optional)

Opening

5/7/10

Electric

380V ,50-60HZ, 40KW( 5 daylights) 380V ,50-60HZ, 56KW( 7 daylights)

380V ,50-60HZ, 75KW( 10 daylights)

Dimension

Dimension of laminator L3080mm*W980mm*H1700mm ,dimension of auto loader/unloader:L2000mm*W1200mm*H1500mm

Neight Weight

3300KGS


WUHAN JIA QIRUI CARD TECHNOLOGY CO., LIMITED
